Transport of acetylene gases
Installation and heating system
Shipyards, for construction of bridges
Steel and Car body construction
Over and Underground working
Welding shops and at manufacturers of welding apparatus
Reinforcements : synthetic fibers
Resistant to ozone, weather UV and abrasion
Working Presssure 20 Bar
Highly flexible, Robust
Fat Free, Free from any harmful to racquer
BS EN 559
EN 1327
No Kink
Temperature Range : - 40°C to 60°C
Flame resistant
100% Made In Korea
Inside wall black, outside wall is red color
Internally and externally smooth

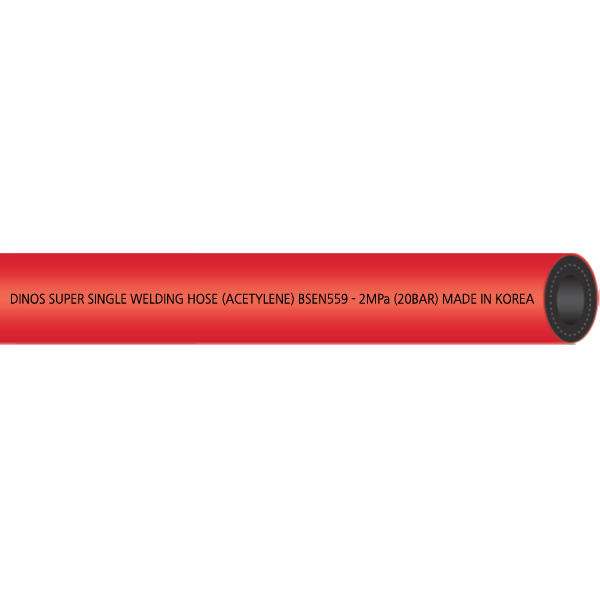

DINOS SUPER SINGLE WELDING HOSE (ACETYLENE) BSEN559 - 2MPa (20BAR) MADE IN KOREA
| Normal Size | Wall thickness | I.D | O.D | Length | W.P | B.P | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | M | ft | BAR | PSI | BAR | PSI |
| 6 | 1/4" | 2.3 | 0.905 | 6.5 | 0.256 | 11.1 | 0.437 | 100 | 300 | 20 | 290 | 60 | 870 |
| 6 | 1/4" | 2.6 | 0.102 | 6.5 | 0.256 | 11.7 | 0.460 | 100 | 300 | 20 | 290 | 60 | 870 |
| 6 | 1/4" | 2.8 | 0.110 | 6.5 | 0.256 | 12.1 | 0.476 | 100 | 300 | 20 | 290 | 60 | 870 |
| 8 | 5/16" | 3.5 | 0.138 | 8 | 0.315 | 15 | 0.591 | 100 | 300 | 20 | 290 | 60 | 870 |
| 10 | 3/8" | 3.5 | 0.138 | 10 | 0.394 | 17 | 0.670 | 100 | 300 | 20 | 290 | 60 | 870 |
| 13 | 1/2" | 3 | 0.118 | 12.5 | 0.492 | 18.5 | 0.728 | 100 | 300 | 20 | 290 | 60 | 870 |
| 16 | 5/8" | 3.5 | 0.138 | 16 | 0.630 | 23 | 0.905 | 100 | 300 | 20 | 290 | 60 | 870 |
